Electrical Metallic Tubing

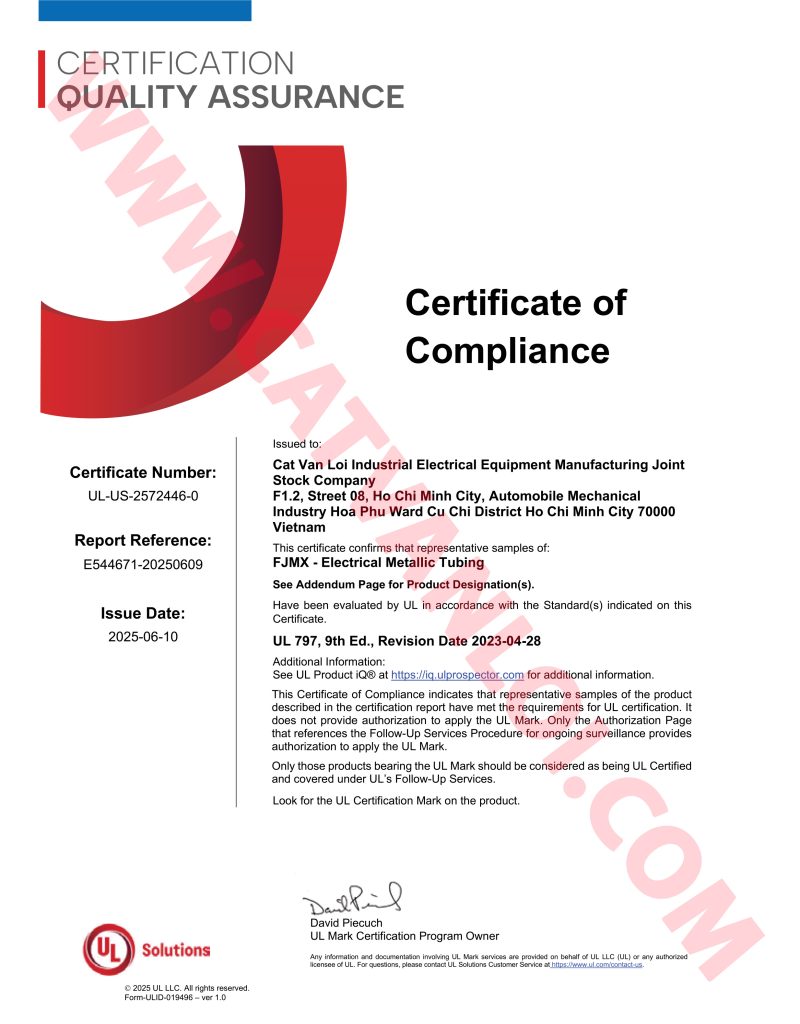

EMT is short for Electrical Metallic Tubing. EMT tube, also commonly called thin-wall, is a steel raceway of circular cross-section, which is unthreaded, and nominally 10′ long. The CVL EMT electrical is manufactured according to UL 797 and ANSI C80.3, Electrical Metallic Tubing – Steel.
Product Details
Product Overview
◆ Standard: ANSI C80.3 / UL 797 (USA)
◆ Material: Pre – Galvanized Steel – Class 3, Hot – dip Galvanized Steel – Class 4
Product Details
EMT is short for Electrical Metallic Tubing. EMT tube, also commonly called thin-wall, is a steel raceway of circular cross-section, which is unthreaded, and nominally 10′ long. The CVL EMT electrical is manufactured according to UL 797 and ANSI C80.3, Electrical Metallic Tubing – Steel.
EMT Tubing is available in trade sizes 1/2” through 4”. CVL EMT is precisely manufactured from high-grade mild strip steel for excellent durability, easy bending and quick cutting. The steel conduit EMT is galvanized both inside and outside for corrosion protection. EMT pipe is commonly installed by use of set-screw or compression-type connectors and couplings.
Reference and Packing
|
Electrical Metallic Tubing – EMT Steel Conduit CVL®
Manufactured according to ANSI C80.3/ UL 797 (USA)
|
|||||
|
Product Code |
Size (inch)
|
OD (mm)
|
Thickness (mm)
|
Length (mm)
|
|
|
Pre – Galvanized Steel – Class 3 (*) |
Hot – dip Galvanized Steel – Class 4 (**)
|
||||
|
EMT12 |
EMT12NN |
1/2 |
17.93 |
1.07 |
3050 |
|
EMT34 |
EMT34NN |
3/4 |
23.42 |
1.25 |
3050 |
|
EMT100 |
EMT100NN |
1 |
29.54 |
1.45 |
3050 |
|
EMT114 |
EMT114NN |
1 1/4 |
38.35 |
1.57 |
3050 |
|
EMT112 |
EMT112NN |
1 1/2 |
44.20 |
1.57 |
3050 |
|
EMT200 |
EMT200NN |
2 |
55.8 |
1.57 |
3050 |
|
EMT212 |
EMT212NN |
2 1/2 |
73.5 |
1.83 |
3000 |
|
EMT300 |
EMT300NN |
3 |
88.7 |
1.83 |
3000 |
|
EMT400 |
EMT400NN |
4 |
113.5 |
2.00 |
3000 |
Tolerance – Outside Diameter: ± 0.3 mm
– Thickness: ± 10%.
– Length: ± 6.4 mm.
(*) The average thickness of the zinc coating layer for Pre-galvanized steel – Class 3 is ≤ 20 microns.
(**) The thickness of the zinc coating layer for Hot-dip galvanized steel Class 4 is ≥ 45 microns (ASTM A123).
