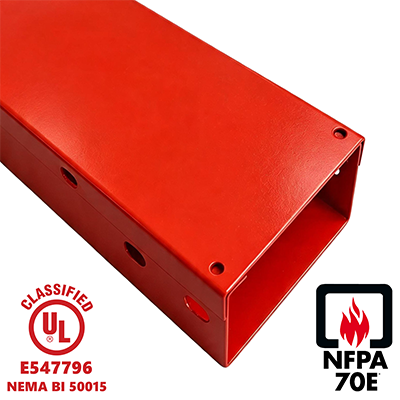

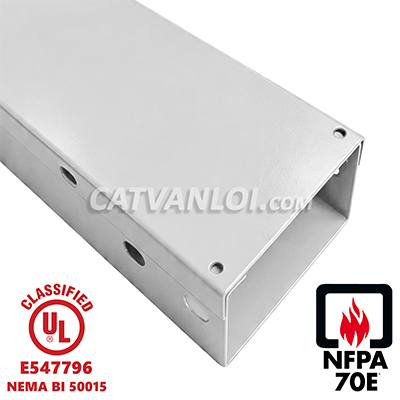

NEMA BI 50015 - Cable Trunking
Cable trunking is used for enclosing and protecting electrical cables, wires, and conduit systems. It provides a safe and organized way to manage cables in buildings, offices, and industrial settings.
Product Details

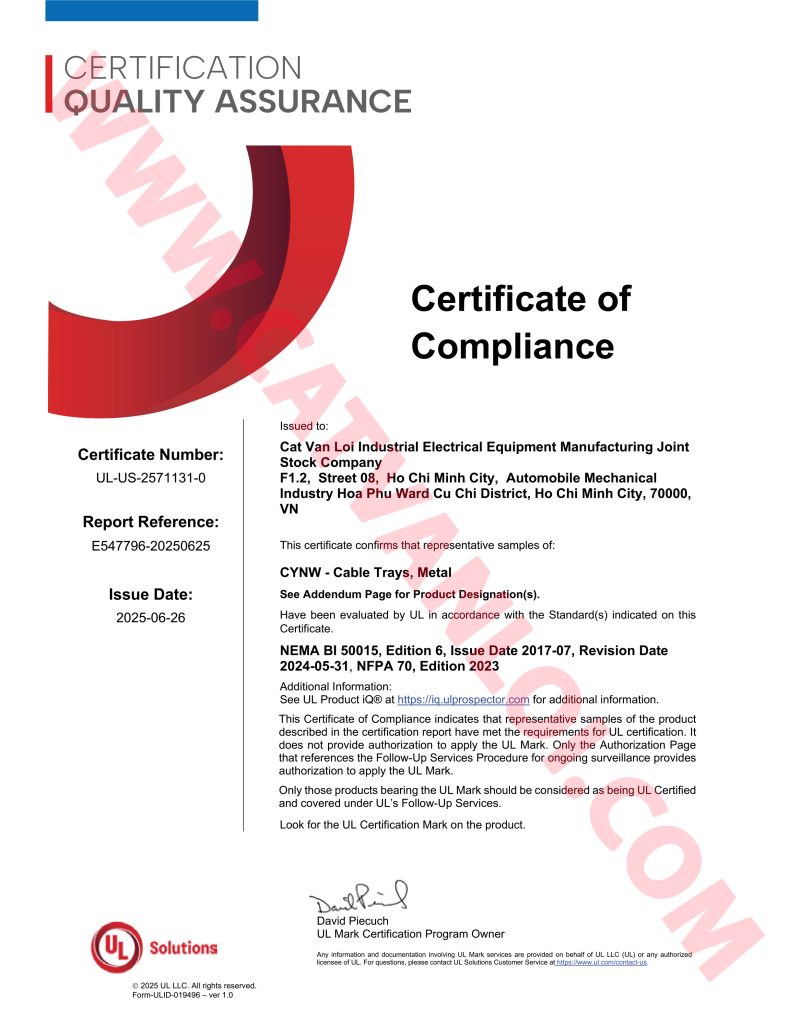

◆ Standard: NEMA BI 50015 – NFPA 70E
◆ Material: G.I steel, Powder coated steel, Hot – dip galvanzied steel, Stainless steel SUS304
◆ Thickness: 1.2 – 2.5 mm (For hot-dip galvanized material, the thickness of the cable tray must be 1.5mm or more.)
◆ Lenght: 2400 -2500 mm (The length depends on each different material)
◆ Color: At the specific requirements of the customer
Product Details
Cable trunking is used for enclosing and protecting electrical cables, wires, and conduit systems. It provides a safe and organized way to manage cables in buildings, offices, and industrial settings. Cable trunking can also help prevent tripping hazards and damage to cables, and can make it easier to maintain and upgrade cable systems. It comes in various sizes, materials, and shapes, depending on the specific application and installation requirements.
Reference and Packing
|
Cable Trunking CVL® Standard NEMA ver. 1:1999 |
|||||
|
Product Code |
Size (mm) |
Product Code |
Size (mm) |
Product Code |
Size (mm) |
|
MC0505 |
50 x 50 |
MC3505 |
350 x 50 |
MC3010 |
300 x 100 |
|
MC1005 |
100 x 50 |
MC4005 |
400 x 50 |
MC3510 |
250 x 100 |
|
MC1505 |
150 x 50 |
MC1010 |
100 x 100 |
MC4010 |
400 x 100 |
|
MC2005 |
200 x 50 |
MC1510 |
150 x 100 |
MC5010 |
500 x 100 |
|
MC2505 |
250 x 50 |
MC2010 |
200 x 100 |
MC6010 |
600 x 100 |
|
MC3005 |
300 x 50 |
MC2510 |
250 x 100 |
||
