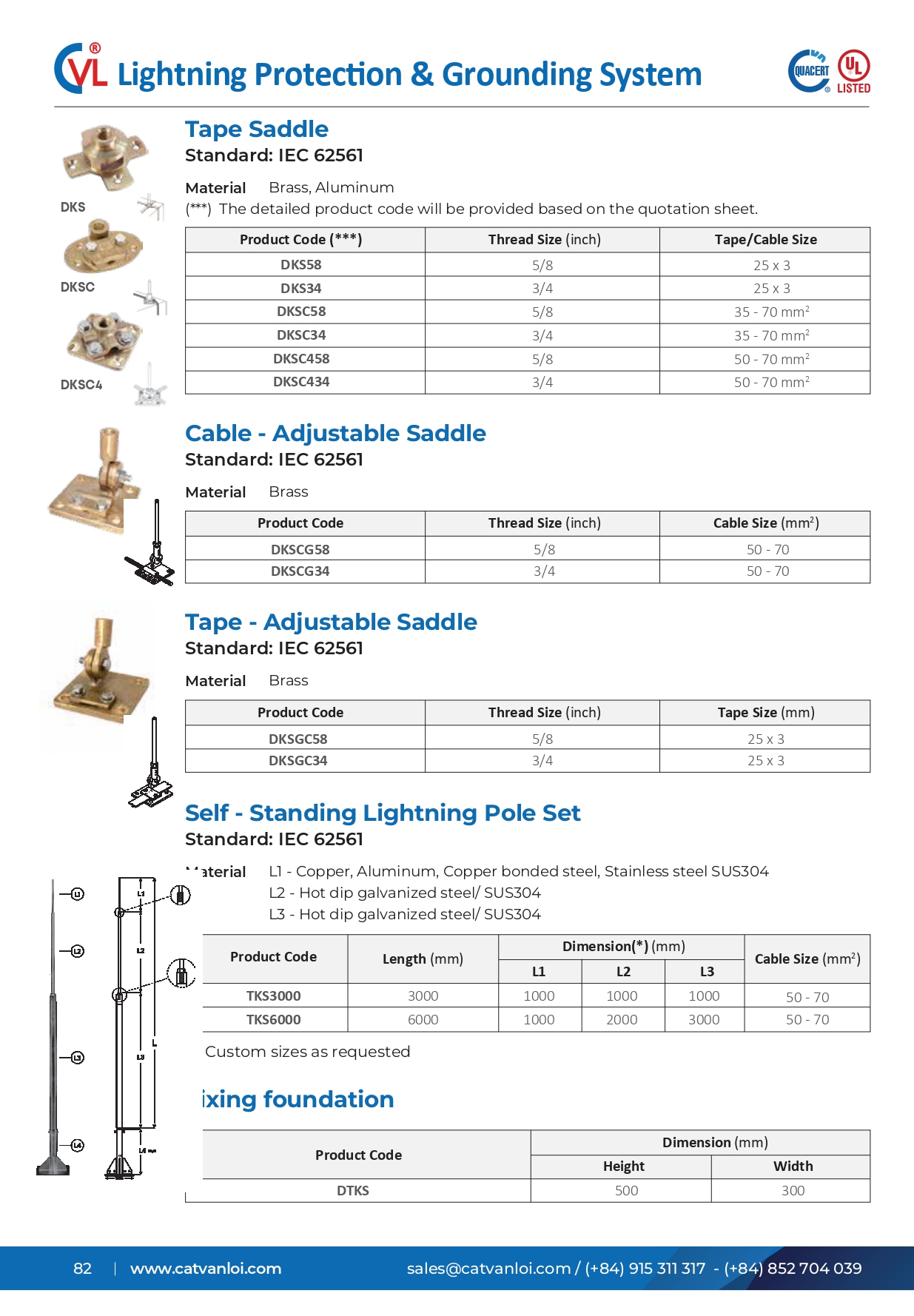

1. Tape Saddle
Cat Van Loi’s Tape Saddle meets IEC 62561 standard and is manufactured from brass and aluminum.
(***) The detailed product code will be provided based on the quotation sheet.

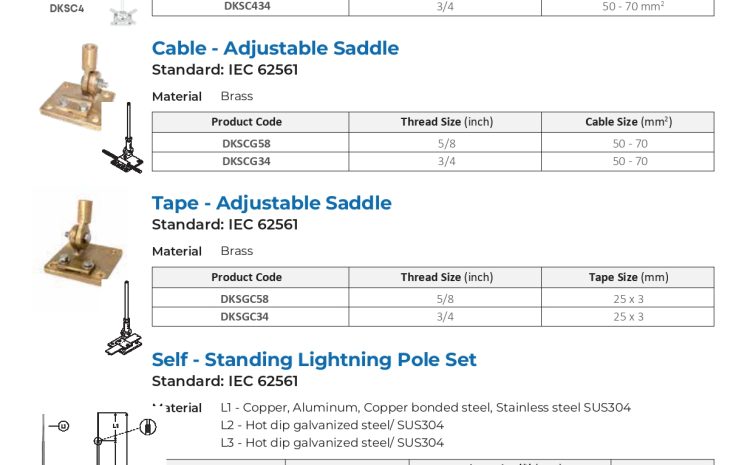

2. Cable-Adjustable Saddle
The Cable-Adjustable Saddle meets IEC 62561 standard and is manufactured from brass.
3. Tape-Adjustable Saddle
The Tape-Adjustable Saddle meets IEC 62561 standard and is manufactured from brass.
4. Self-Standing Lightning Pole Set
The Self-Standing Lightning Pole Set meets IEC 62561 standard. It is manufactured in three sections:
- L1 – Copper, aluminum, copper bonded steel, stainless steel SUS304
- L2 – Hot-dip galvanized steel/ SUS304
- L3 – Hot-dip galvanized steel/ SUS304.
Two product codes are available covering cable sizes from 50 – 70 mm²:
TKS3000 with a total length of 3000 mm (L1: 1000 mm, L2: 1000 mm, L3: 1000 mm). TKS6000 with a total length of 6000 mm (L1: 1000 mm, L2: 2000 mm, L3: 3000 mm).
(*) Custom sizes as requested.
5. Fixing Foundation
The Fixing Foundation is available under product code DTKS with a height of 500 mm and width of 300 mm.
