Cat Van Loi flexible steel conduits are designed to protect wiring systems in locations requiring high flexibility, where rigid steel conduits are impractical to install.

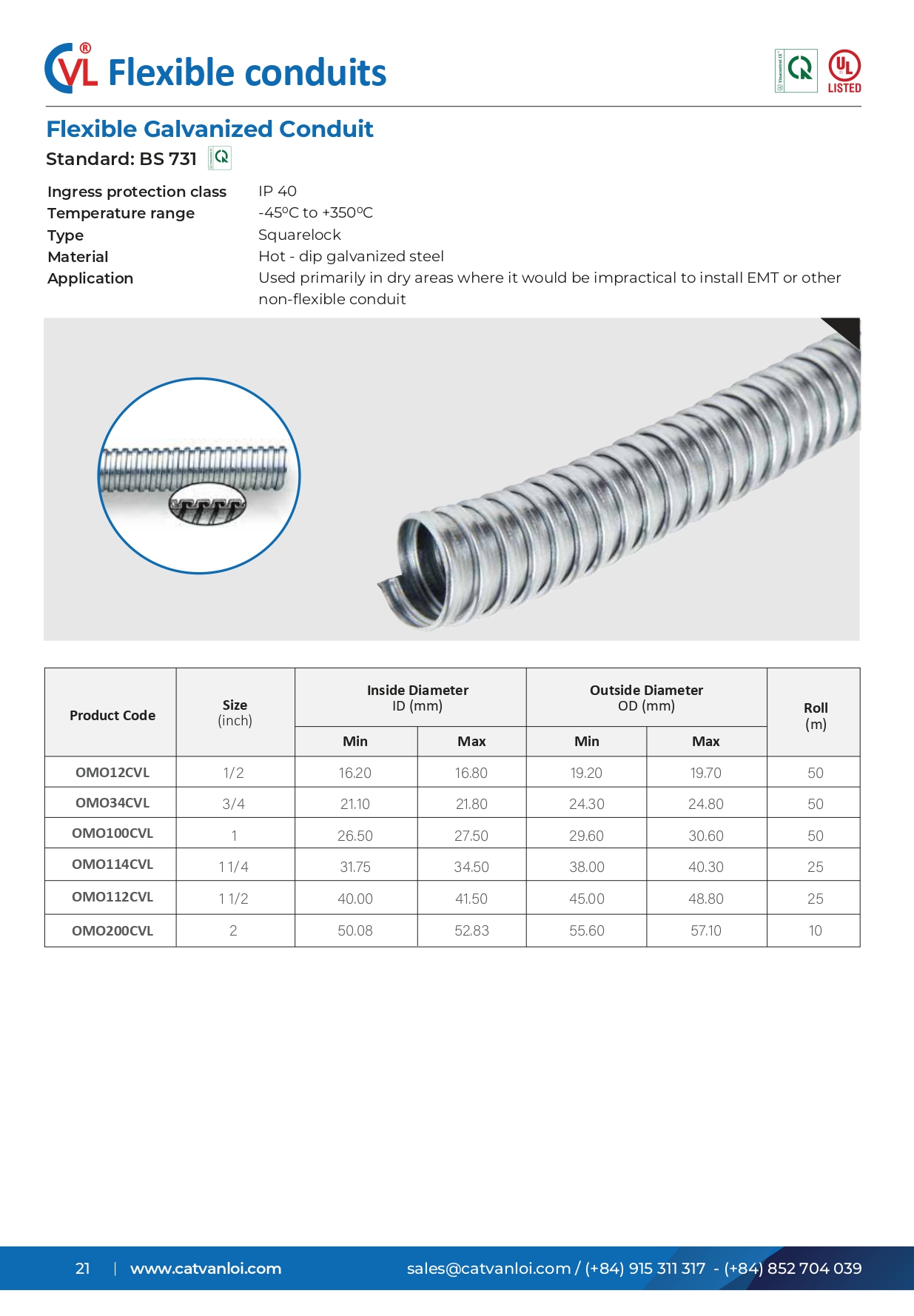

1. Technical Specifications
-
Standard: Manufactured in accordance with BS 731.
-
Type: Squarelock (single-lock structure), which provides optimal elasticity and flexibility.
-
Material: Hot-dip galvanized steel, offering durable corrosion resistance.
-
Ingress Protection (IP): IP 40.
-
Temperature Range: From -45°C to +350°C, capable of withstanding extreme thermal environments.
-

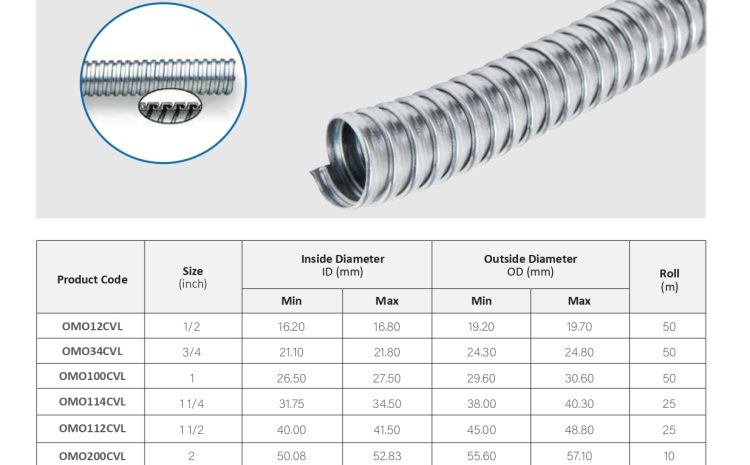

Size: Available from 1/2″ to 2″, corresponding to product codes from OMO12CVL to OMO200CVL.
2. Key Advantages
-
Exceptional Flexibility: Due to the Squarelock structure, the conduit can be bent easily, making installation in complex terrains and tight corners simple and efficient.
-
Superior Heat Resistance: With a thermal capacity of up to 350°C, it is the premier choice for areas near furnaces, industrial machinery with high heat output, or locations with high fire risks.
-
Excellent Mechanical Protection: The galvanized steel core protects internal electrical cables from physical impacts, as well as damage from animals or insects.
-
Installation Cost Savings: An effective replacement for rigid conduits in winding sections, reducing the need for excessive connectors and fittings, thereby optimizing both costs and labor time.
3. Applications
The product is primarily utilised in dry areas for wiring devices subject to frequent vibration or movement, such as motors and lighting fixtures. It is also suitable for concealed electrical systems in walls or floors within buildings and industrial plants.
