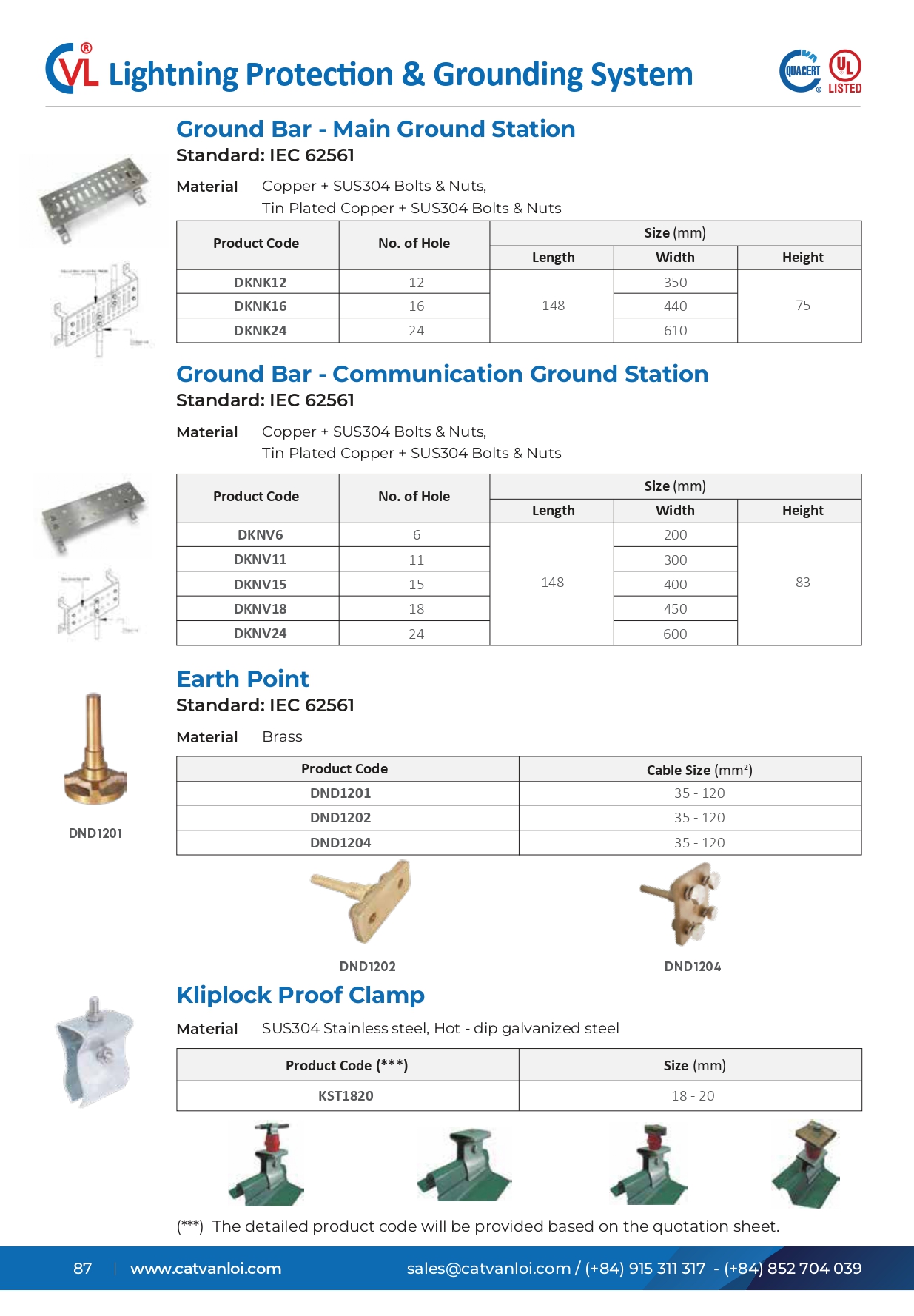

1. Ground Bar – Main Ground Station
Cat Van Loi’s Ground Bar for Main Ground Station meets IEC 62561 standard and is manufactured from copper with SUS304 bolts and nuts, or tin plated copper with SUS304 bolts and nuts.
Three product codes are available:
- DKNK12 with 12 holes and width of 350 mm
- DKNK16 with 16 holes and width of 440 mm
- DKNK24 with 24 holes and width of 610 mm
(All with a length of 148 mm and height of 75 mm.)

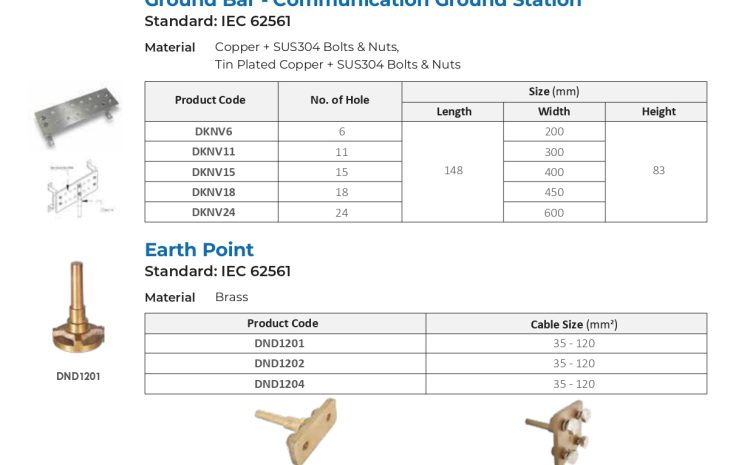

2. Ground Bar – Communication Ground Station
The Ground Bar for Communication Ground Station also meets IEC 62561 standard and is manufactured from copper with SUS304 bolts and nuts, or tin plated copper with SUS304 bolts and nuts.
Five product codes are available:
- DKNV6 with 6 holes and width of 200 mm
- DKNV11 with 11 holes and width of 300 mm
- DKNV15 with 15 holes and width of 400 mm
- DKNV18 with 18 holes and width of 450 mm
- DKNV24 with 24 holes and width of 600 mm
(All with a length of 148 mm and height of 83 mm.)
3. Earth Point
The Earth Point meets IEC 62561 standard and is manufactured from brass. Three product codes are available: DND1201, DND1202, and DND1204, all covering cable sizes from 35 mm² to 120 mm².
4. Kliplock Proof Clamp
The Kliplock Proof Clamp is manufactured from SUS304 stainless steel and hot-dip galvanized steel. It is available under product code KST1820 with a size of 18 – 20 mm.
(***) The detailed product code will be provided based on the quotation sheet.
