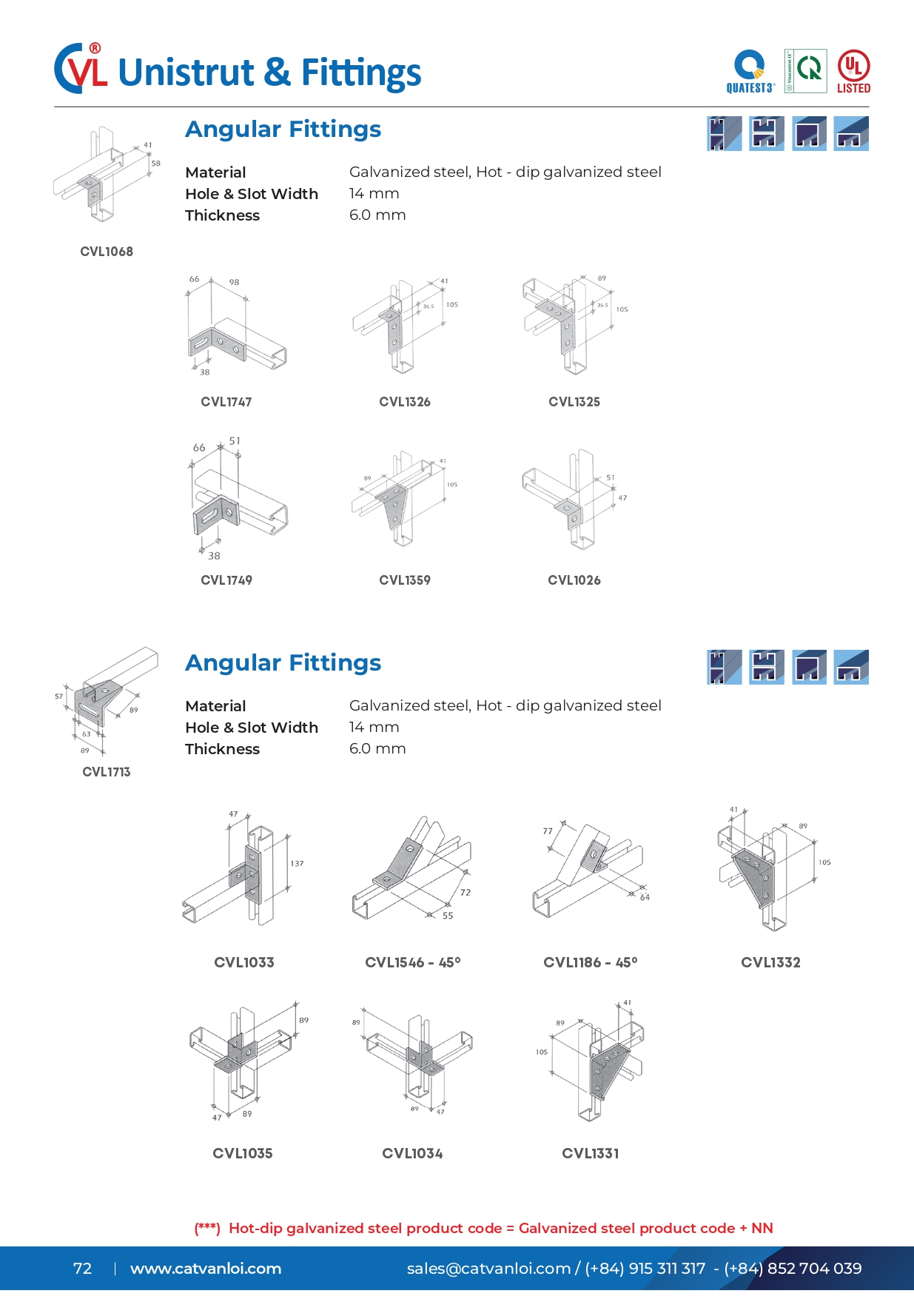

1. Angular Fittings
Cat Van Loi’s Angular Fittings are manufactured from galvanized steel and hot-dip galvanized steel, with a hole and slot width of 14 mm and thickness of 6.0 mm. This series is available in six configurations: CVL1747, CVL1326, CVL1325, CVL1749, CVL1359, and CVL1026, designed for various angular unistrut channel connection requirements.
2. Angular Fittings
The second series of Angular Fittings is also manufactured from galvanized steel and hot-dip galvanized steel, with a hole and slot width of 14 mm and thickness of 6.0 mm. This series includes seven configurations: CVL1713, CVL1033, CVL1546-45°, CVL1186-45°, CVL1332, CVL1035, CVL1034, and CVL1331, covering standard and 45° angle connection requirements for unistrut channel installations.

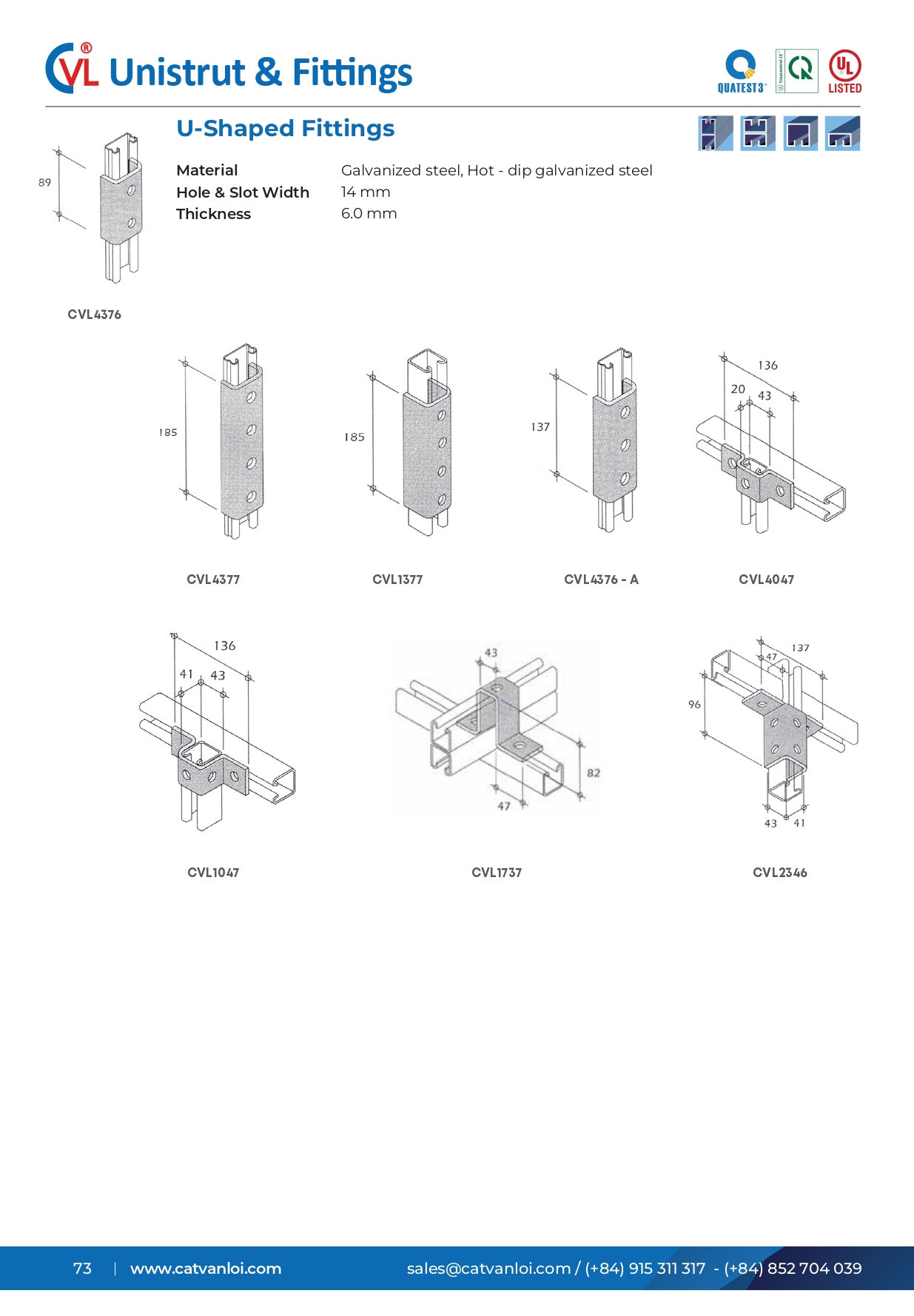

3. U-Shaped Fittings
The U-Shaped Fittings are manufactured from galvanized steel and hot-dip galvanized steel, with a hole and slot width of 14 mm and thickness of 6.0 mm. This series is available in seven configurations: CVL4377, CVL1377, CVL4376-A, CVL4047, CVL1047, CVL1737, and CVL2346, designed for various U-shaped unistrut channel connection and support requirements.
(***) Hot-dip galvanized steel product code = Galvanized steel product code + NN
