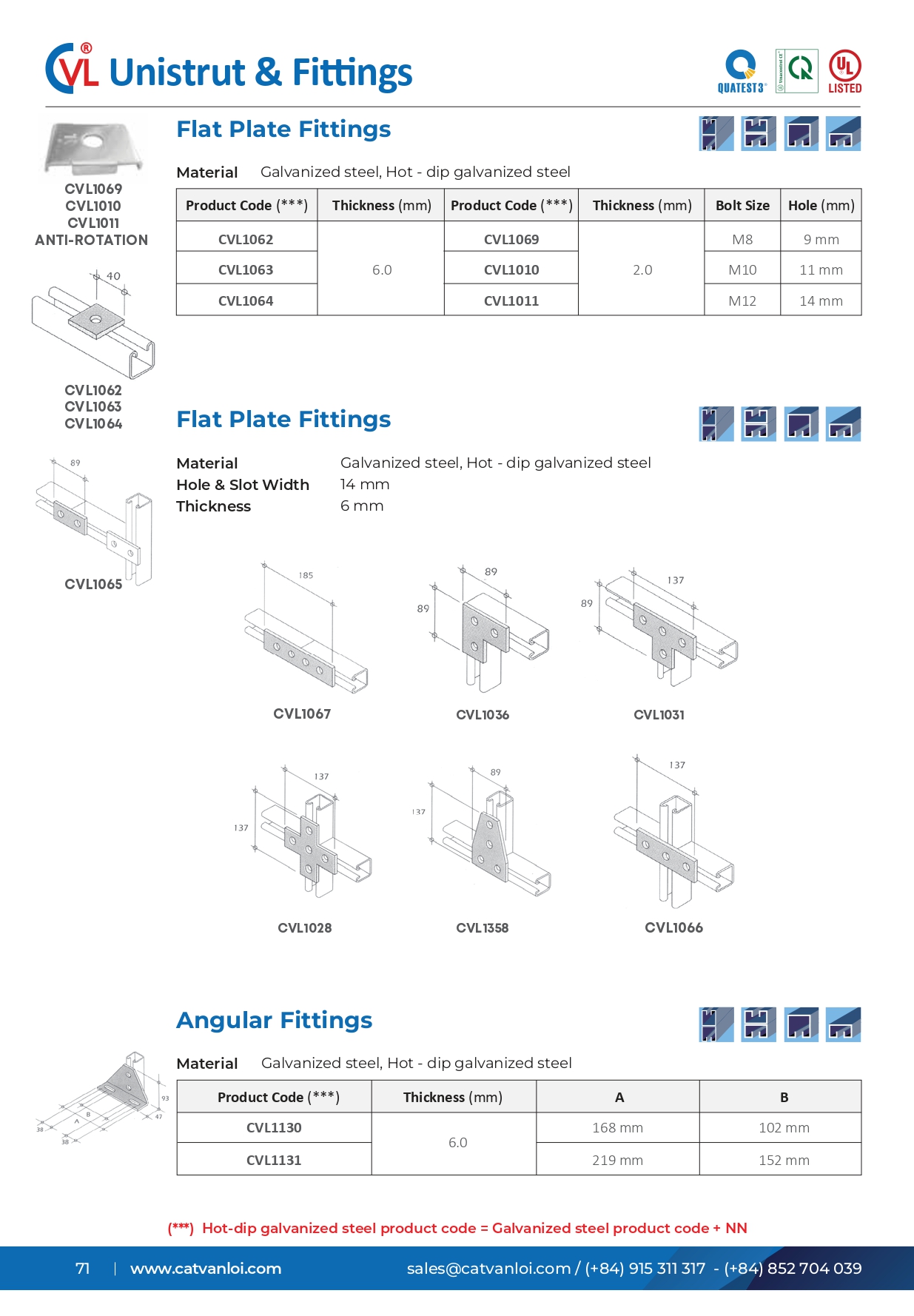

1. Flat Plate Fittings
Cat Van Loi’s Flat Plate Fittings are manufactured from galvanized steel and hot-dip galvanized steel. The Anti-Rotation series is available in two thickness options — 6.0 mm for the base plate and 2.0 mm for the fitting plate — covering bolt sizes from M8 to M12 with hole sizes from 9 mm to 14 mm.

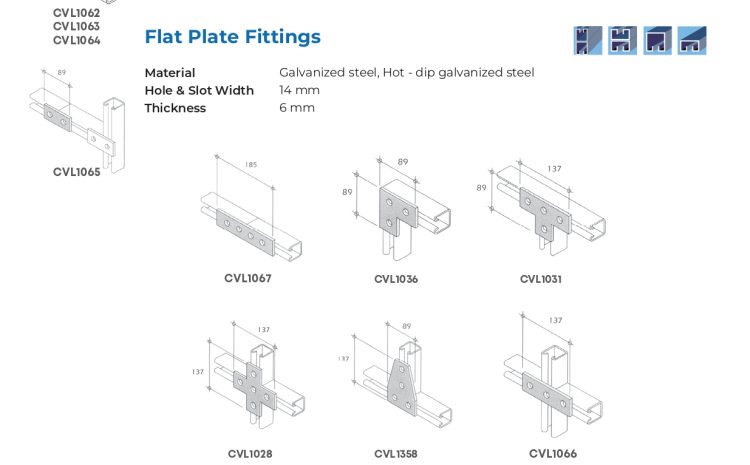

The second series of Flat Plate Fittings features a hole and slot width of 14 mm and a thickness of 6 mm, available in six configurations to suit various unistrut channel connection requirements.
2. Angular Fittings
The Angular Fittings are manufactured from galvanized steel and hot-dip galvanized steel, with a thickness of 6.0 mm.
(***) Hot-dip galvanized steel product code = Galvanized steel product code + NN
